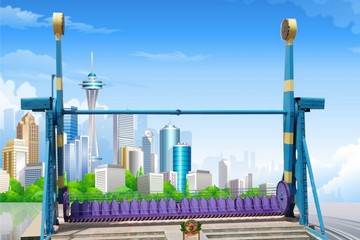

Tsunami/top spin

This Ride has the seating arrangement for 18 adults and main movement is thru the centre axis of two vertical column at the height of 5M . This giving the ride a height of 9M when it is in the top , the ride is fully automatic with manual over rides . The PLC of the ride is programmed that it makes the ride move in various locations like 90? , 180?, 270?, etc. Which are sensed thru proximity switches and as the craft of the ride has its own axis it gives a good swing to the craft when it is moving or even when it is stopped.

Specifications	Junior	Giant
Cycle / Hour	15 – 20 Per Hour	15 – 20 Per Hour
Drive type	Gear	Gear
Hourly Capacity	306	476
No. of Coaches	One	One
Panel-Controlled	Fully Automatic PLC Controlled with VFD	Fully Automatic PLC Controlled with VFD
Power consumption	15 K.W x 2 / Lighting Power – 10 K.W	22 K.W x 2/Lighting Power – 10 K.W
Required Space	12 x 7M	6 x 10M
Ride Duration	3 minutes (variable)	3 minutes (variable)
Ride Height	9 Meter Max.	12 Meter
Safety Bar	Shoulder locking P.U coated	Shoulder locking P.U coated
Seating Capacity	18 Adults	28 Adults
Voltage Required	415 V	415 V
